TFT-H016A01ZGIST4N20 | 1.6 inch IPS circular TFT LCD screen | MIPI interface | 400x400 dot matrix LCD screen | optional capacitive touch/resistive touch

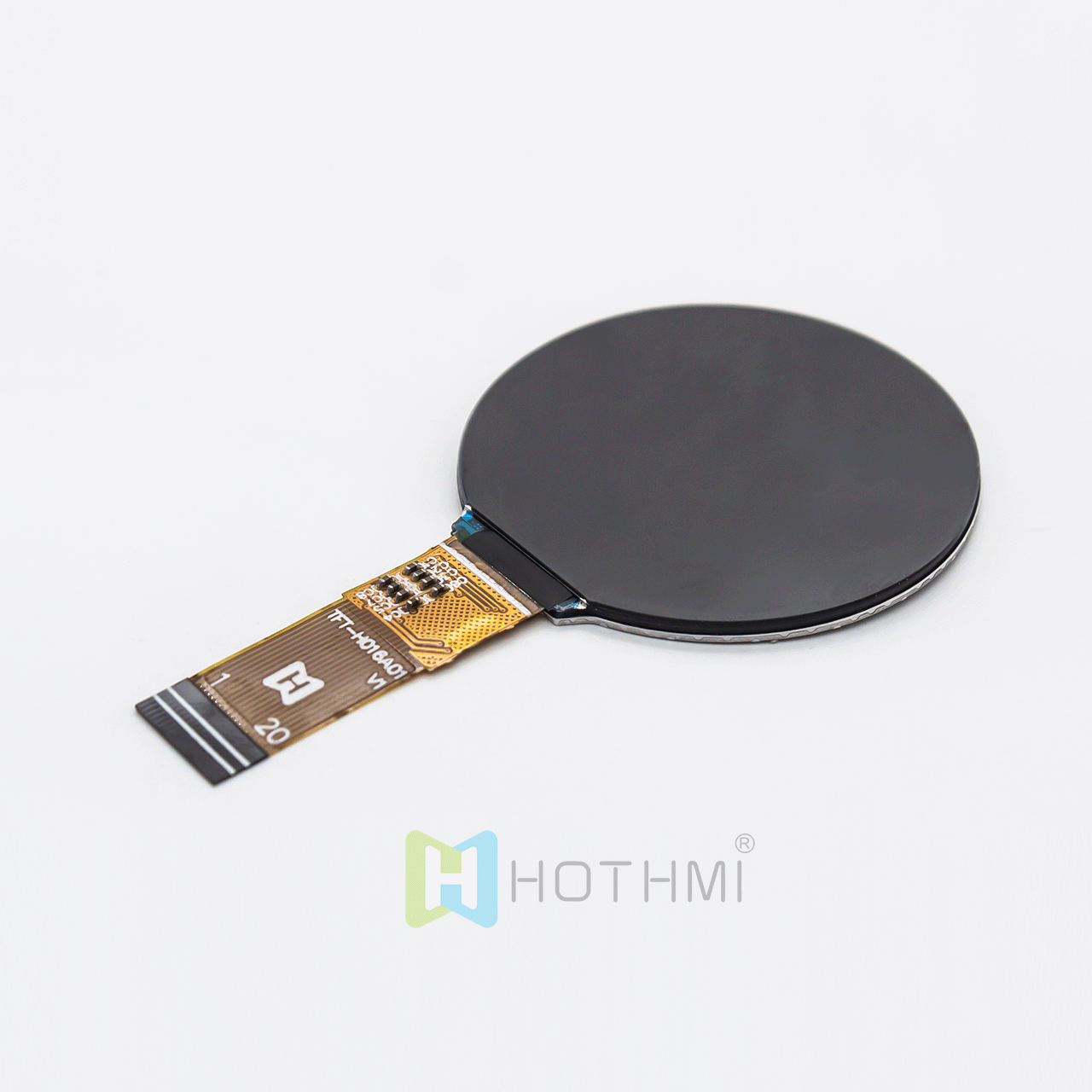

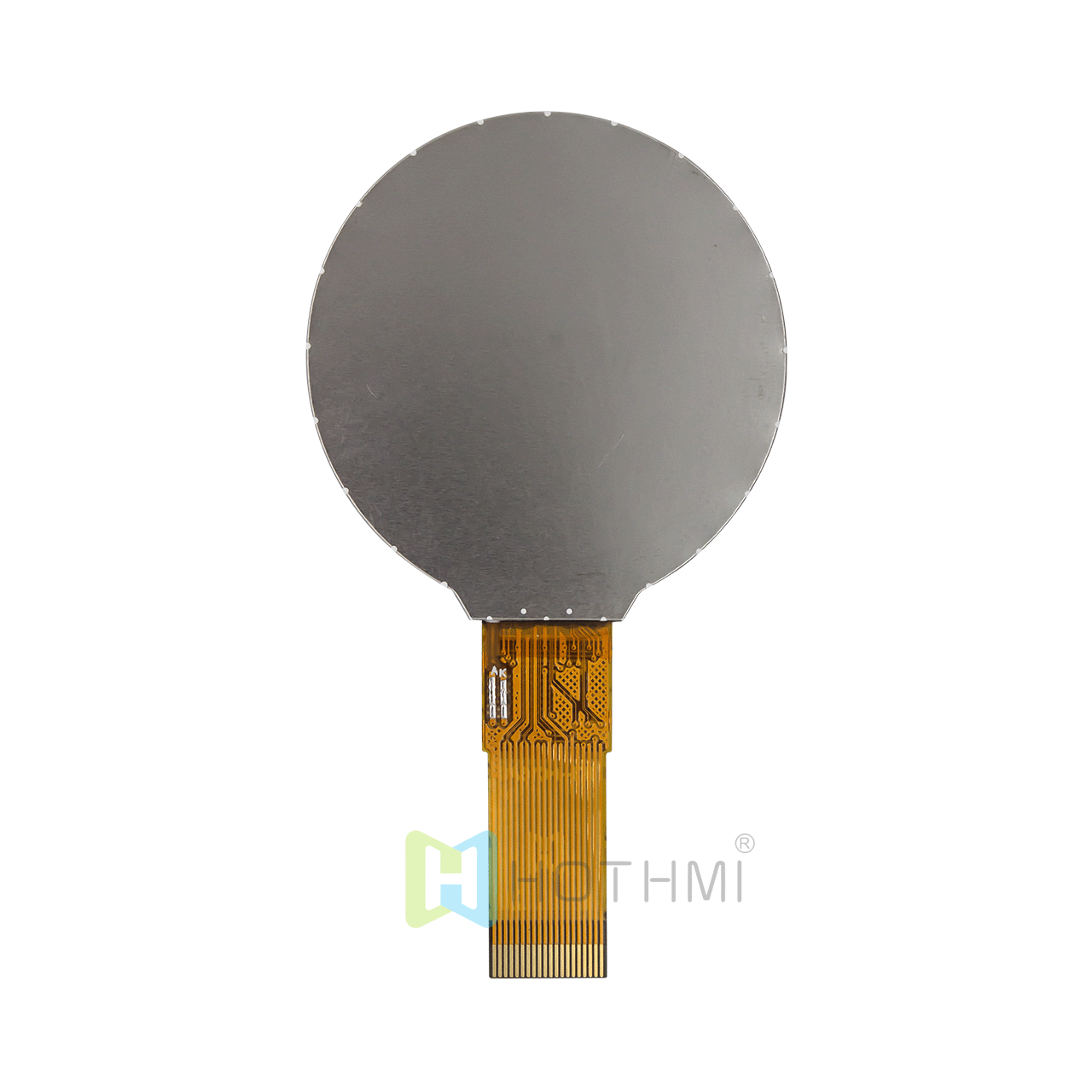

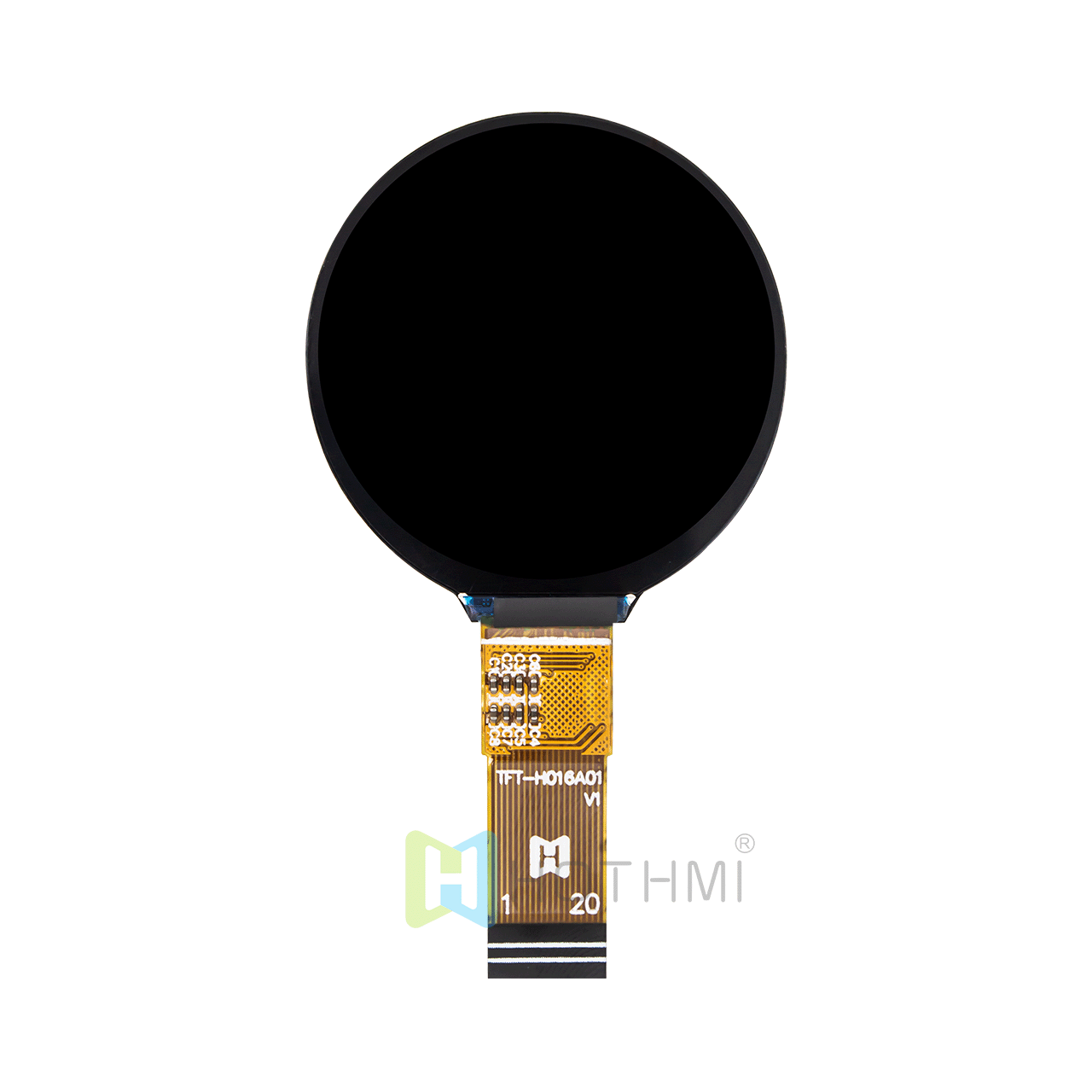

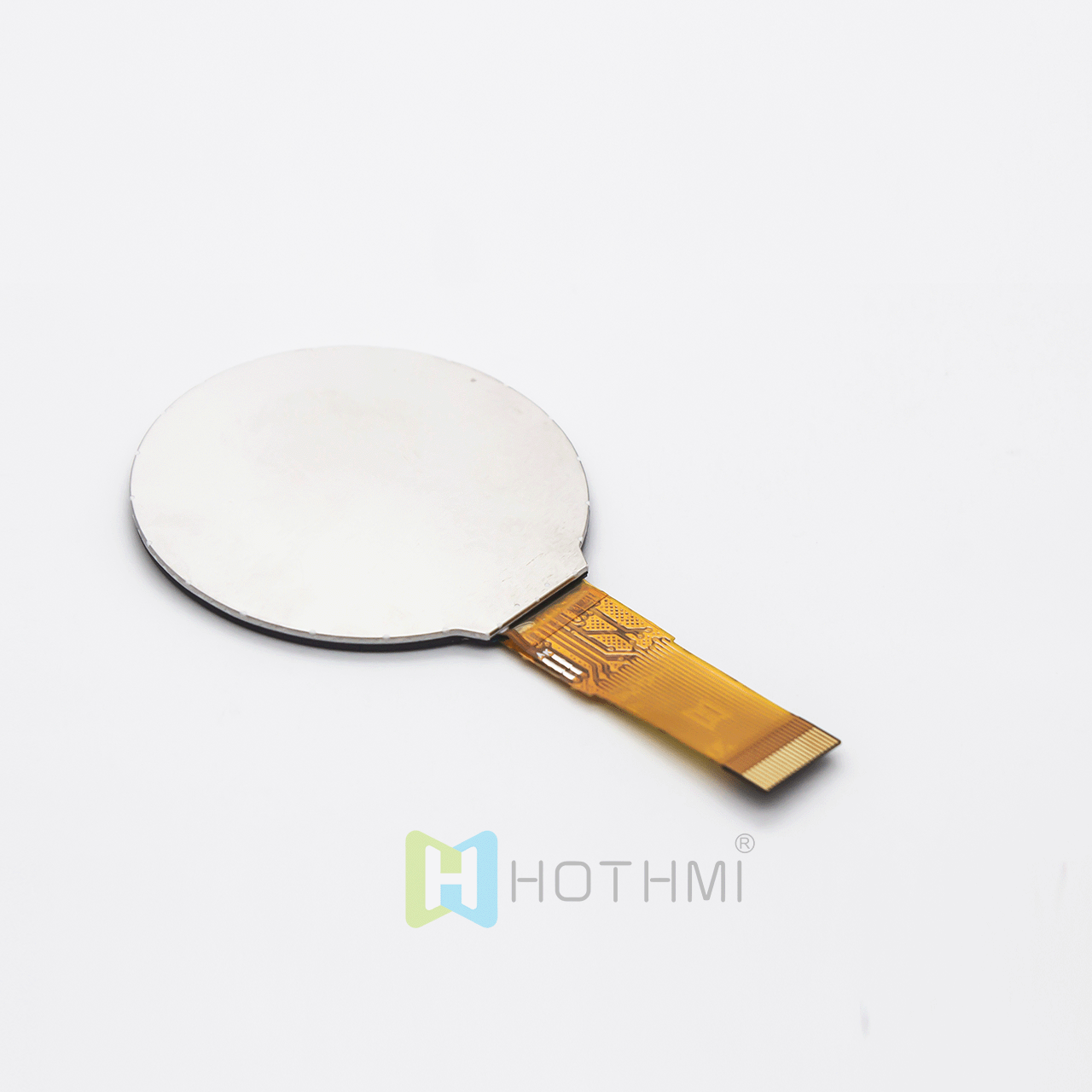

TFT-H016A01ZGIST4N20 is a 1.6-inch circular color LCD module with a resolution of 400x400, built-in ST7797 controller, optional touch screen, high image quality, IPS wide viewing angle, MIPI/QSPI interface support, 65K/262K true color, FPC connection (optional connector), 1.8V~3.3 voltage, and vertical display support. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for single-chip development platforms such as 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
Product Highlights:
•400x400 HD Resolution
•85° Wide Viewing Angles
•MIPI Interface for seamless integration
•ST7797 Driver IC for reliable performance
•-30°C to +80°C operating range
•500 cd/m² Brightness for clear visibility
•30,000-Hour LED Lifespan
Built for reliability, tested under extreme temperatures and humidity. Perfect for Raspberry Pi, Arduino, and DIY electronics projects.
| Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
| Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
| Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
| parameter | Parameter Description | unit |
| TFT LCD | Standard TFT | |
| Diagonal inches | 1.6 " | Inch |
| resolution | 400 x RGB x 400 (TFT) | dots |

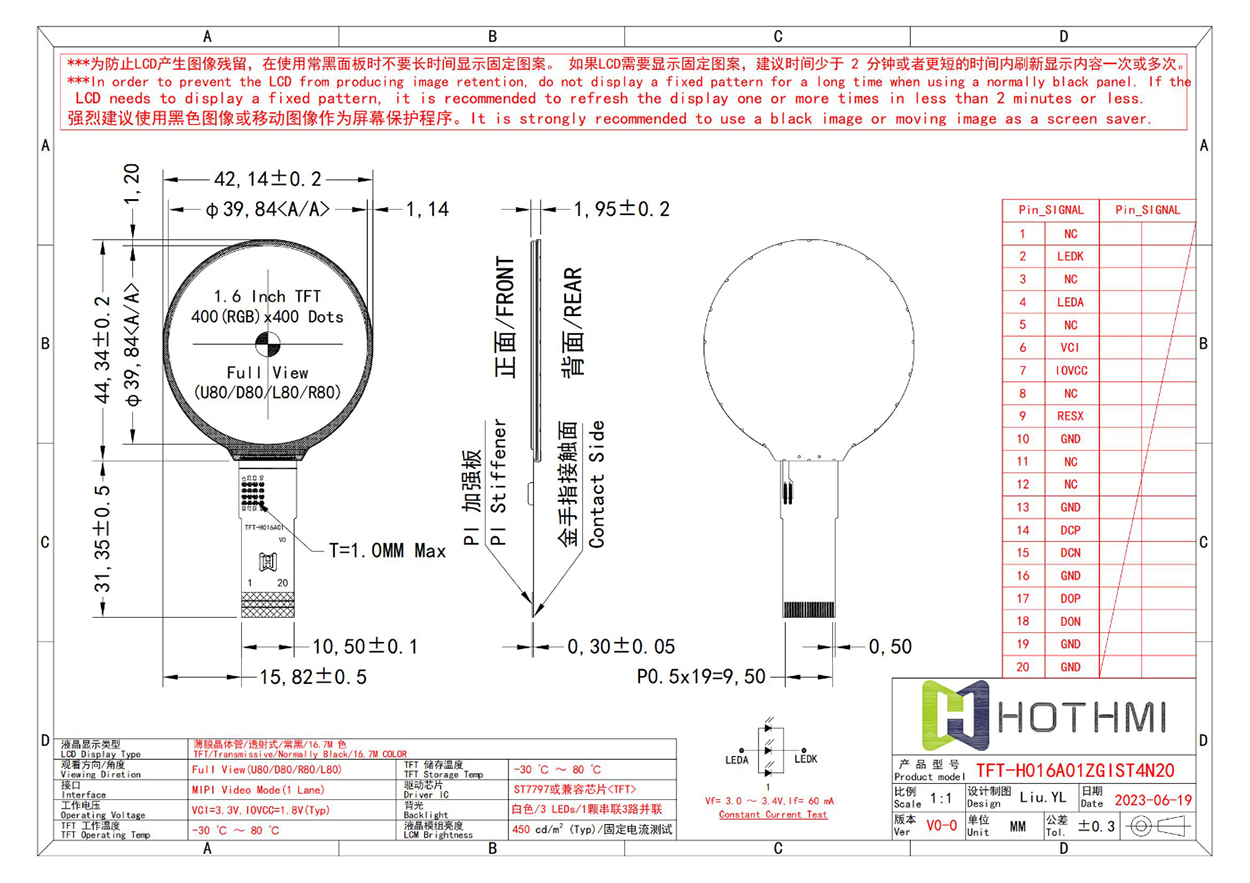

| Dimensions | 42.14x44.34x1.95 | mm |
| Size (AA) area | 39.84x39.84 | mm |
| LCD specifications | TFT, White, transparent | |
| Display perspective | 80/80/80/80 (IPS) | |
| aspect ratio | 1: 1 | |
| Backlight specifications | LED, white | |
| TFT driver chip | ST7797 | |
| Touch glass type | nothing | |
| surface | Anti-Glare | |
| Display brightness | four hundred and fifty | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+80 | °C |
|
|
1.6-inch round TFT LCD display/MIPI interface/400x400 dots/IPS full viewing angle/wide temperature/ST7797/optional touch screen/compatible with Images
|
