COG LCD Display | 128x64 STN+YG LCD Panel

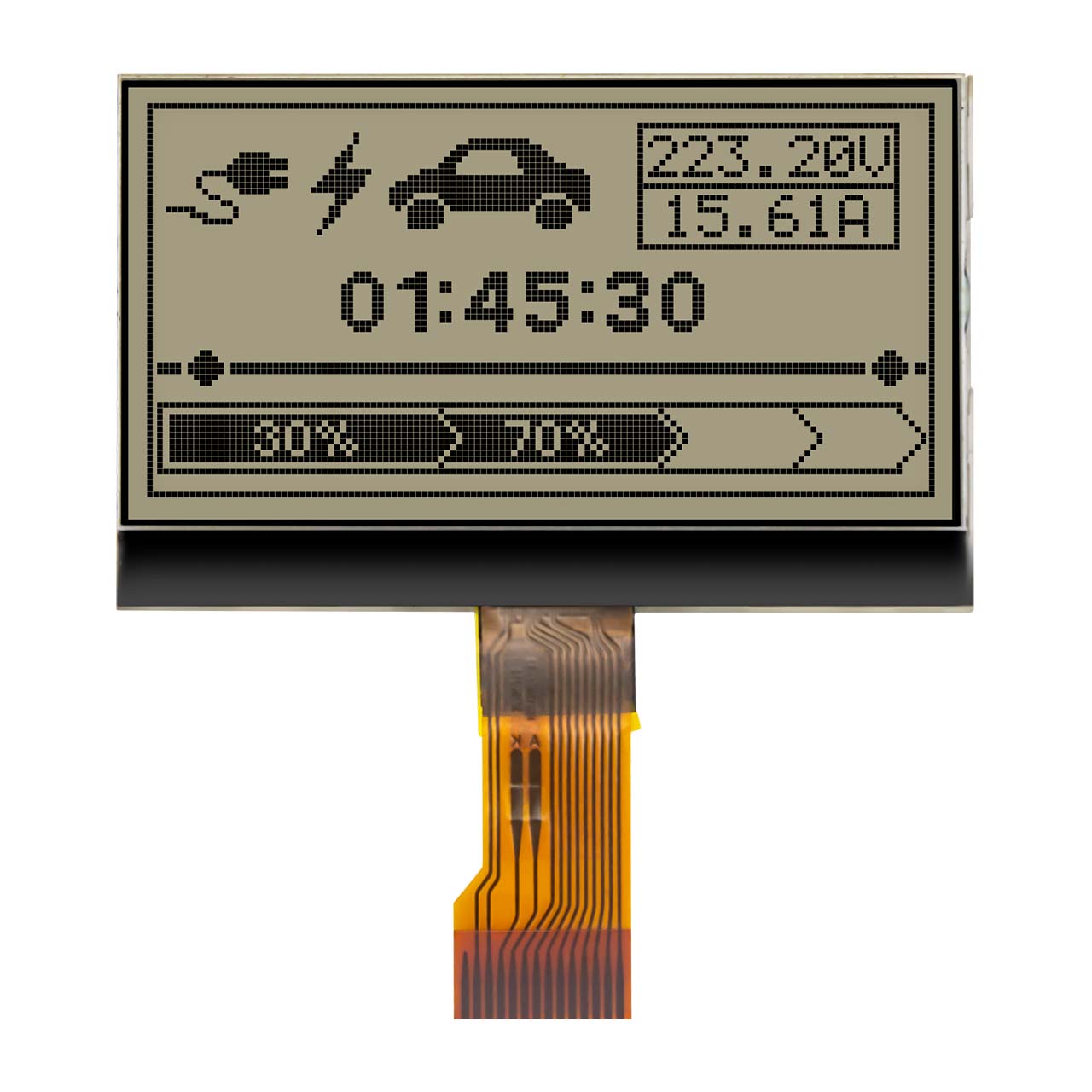

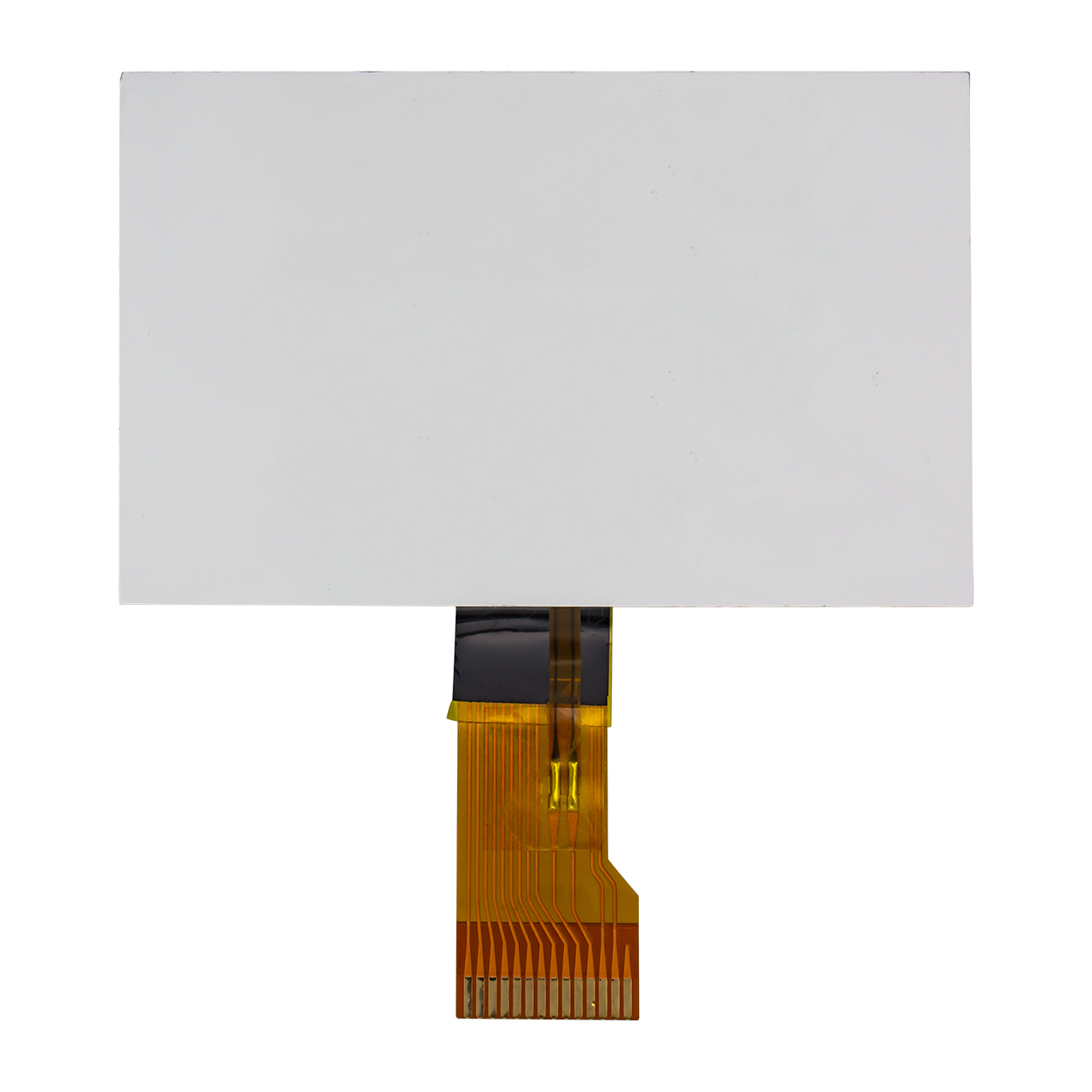

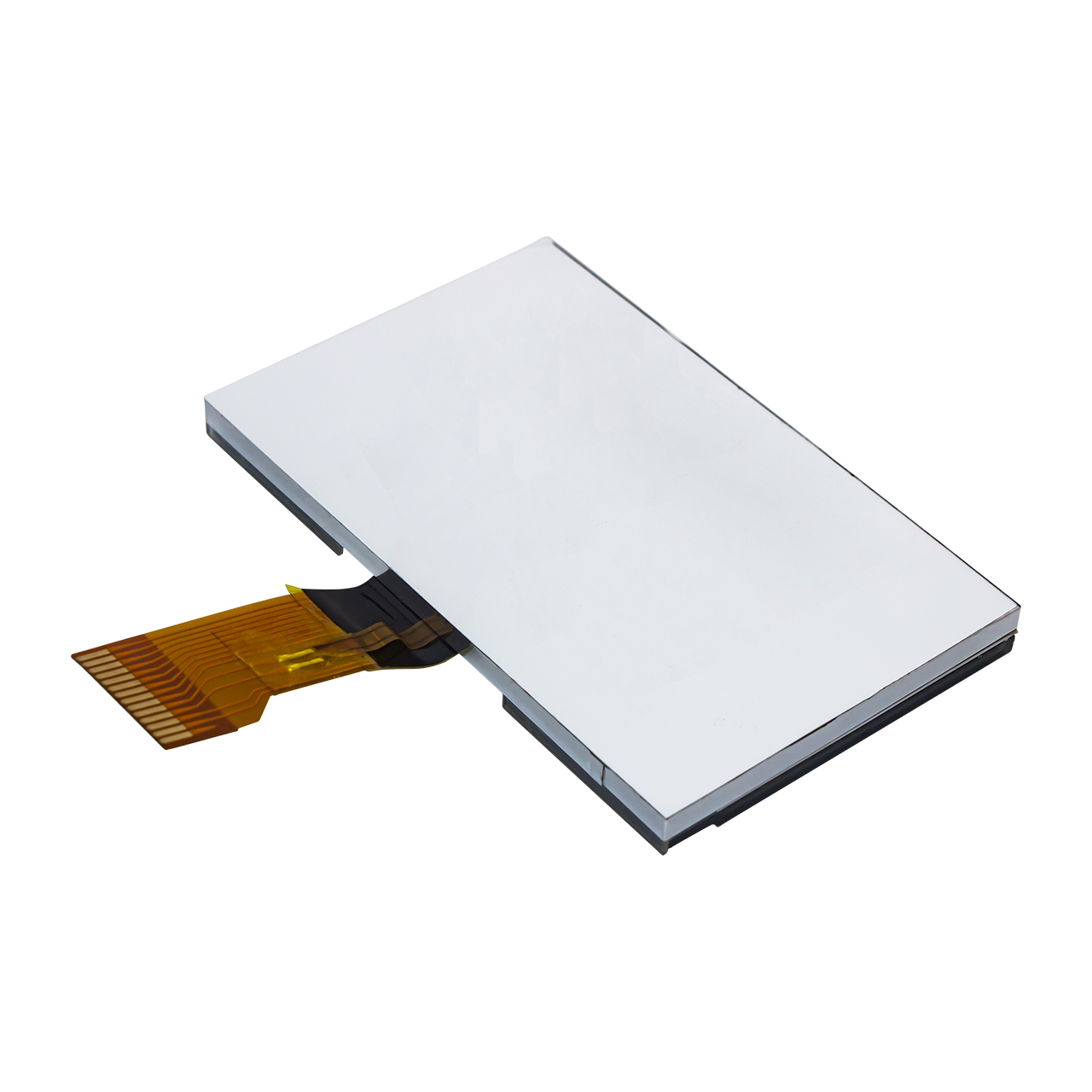

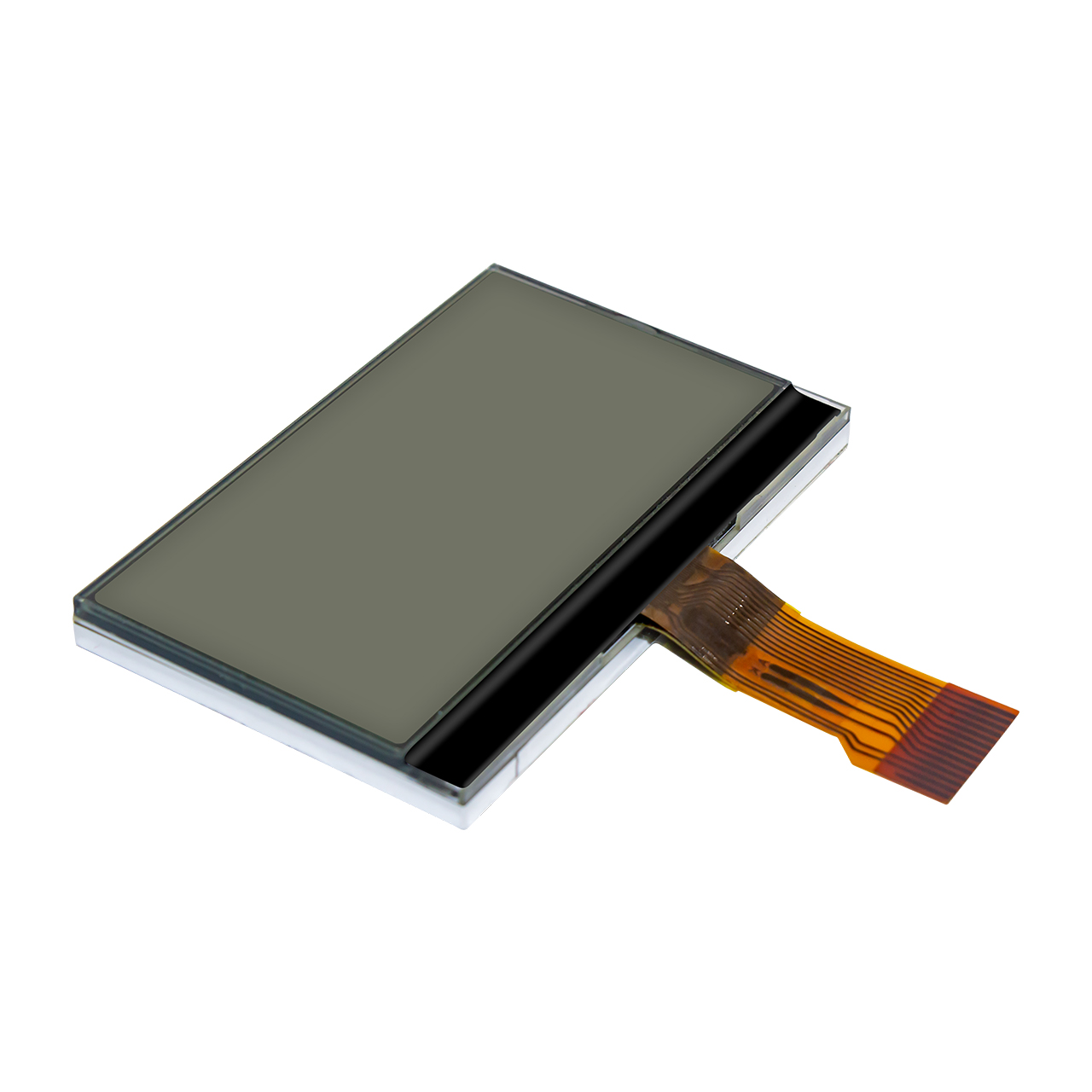

Premium Monochrome COG LCD Module - HTG12864-82 by HOTLCD
Looking for a reliable, high-performance display solution? Discover our HTG12864-82 monochrome COG LCD module – designed to elevate your projects with precision and durability!
Key Features & Benefits
Sharp Visual Performance
128x64 pixel resolution for crisp text and graphics.
FSTN, positive, transflective display mode ensures clear visibility in both bright and low-light environments.
12H viewing angle for versatile installation flexibility.
Efficient & Versatile Design
Compact size: 40.8x33.1x4.15mm – perfect for space-constrained applications.
White LED backlight for enhanced readability, even in dim conditions.
1/64 duty, 1/9 bias driving method ensures low power consumption and stable operation.
Robust Mechanical & Electrical Specs
Wide operating temperature range: -20°C to 70°C, ideal for industrial and consumer use.
Durable COG (Chip-on-Glass) construction for reliable performance and long lifespan.
Multiple interface options: Supports parallel (8080/6800 modes) and 4-line SPI for easy integration.
User-Friendly & Safe Handling
Simple reset mechanism via /RES pin for quick initialization.
Static charge protection and clear mounting guidelines for hassle-free assembly.
Strict inspection standards ensure minimal defects (e.g., ≤3 minor spots/line defects).
Applications
Perfect for:
Industrial control panels
Medical devices
Consumer electronics (e.g., smart meters, POS systems)
Automotive displays
Why Choose HOTLCD?
Professional expertise: Decades of experience in display solutions.
Quality assurance: RoHS compliant and built to withstand harsh environments.
Custom support: Tailored solutions for unique project requirements.
This COG LCD Display is white pixels on a blue background LCD.This transflective LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective properties to reflect the image back to the viewer, and in dark environments, the backlight of the product increases the brightness of the display and makes the screen easy to read, providing high contrast and showing clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This COG LCD display module is created with a built-in negative voltage and comes with a built-in ST7567 controller. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and will not function properly when used in a temperature range of -20 to 70 degrees Celsius. COG LCD Display has an optimal viewing angle of 12:00, an operating voltage of 3.3V, and is RoHS compliant.
| parameter | Specification content | unit |
| Name | HTG12864-82-35S-14C10-V02 | |
| Graphic display | 128 × 64 | dots |
| Dimensions | 71.4x44.7x6.2 | mm |
| VA size | 66.7x35 | mm |
| AA size | 63.98x31.98 | mm |
| Pixel pitch | 0.5x0.5 | mm |
| Driver chip | ST7567 | |
| Applied voltage | 5.0V | V |
| Backlight illumination | White | |
| Display mode | FSTN(+) | |
| Drive mode | 1/64 duty cycle | |
| Product type | COG LCD Display | |
| Polarizer type | Transmissive | |
